HCW High-capacity Swing Barrier Turnstile with Intelligent Recognition and Triple Anti Pinch Protection for secure access control.
| 원래 장소 | 심천, 중국 |
|---|---|
| 브랜드 이름 | Hongchuangwei |
| 인증 | CE |
| 모델 번호 | CW404 |
| 최소 주문 수량 | 2개 조각 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 나무 케이스 |
| 배달 시간 | 7-15 영업일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 일 당 100개 조각 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 특별한 기능 | 내장 사이렌 | 섀시 크기 | 길이 1200 * 너비 280 * 높이 1000 (MM) |
|---|---|---|---|
| 수직 섀시 | 길이 380 * 너비 280 * 높이 1000 (MM) | 스윙암 길이 | 500-900mm |
| 통과 속도 | 40명/분 | 구동 전류 | >10mA |
| 근무환경 | 실내 및 실외(그늘창) -10℃~70℃ | ||
| 강조하다 | high-capacity swing barrier turnstile,intelligent recognition swing barrier turnstile,anti pinch protection swing barrier turnstile |
||
제품 설명
HCW High-capacity Swing Barrier Turnstile with Intelligent Recognition and Triple Anti-Pinch Protection
Product Overview
CW404 Intelligent Swing Gates integrate next-generation IoT technology, combining smart recognition, safety protection, and data management to deliver a comprehensive access control solution for modern commercial spaces. Certified with ISO9001 Quality Management System, every unit meets industry-leading standards.
Core Technical Highlights
Intelligent Recognition System
- Facial recognition (False acceptance rate <0.001%)
- QR Code/NFC recognition (Response time <0.5s)
- ID Card/IC Card recognition (Multi-protocol compatibility)
Safety Protection System
- Triple anti-pinch protection: Infrared + Mechanical + Current detection
- Emergency escape function (Auto-release upon power failure)
- Anti-tailgating alarm system
- Anti-collision design (Withstands up to 80kg impact force)
Smart Management Platform
- Real-time foot traffic statistics & analysis (Accuracy rate ≥99%)
- AI-powered anomaly detection
- Multi-device cluster management
Technical Specifications
| Product name | CW404 |
|---|---|
| Power Supply Voltage | AC220V±10%,50/60HZ |
| Rated power | 20W |

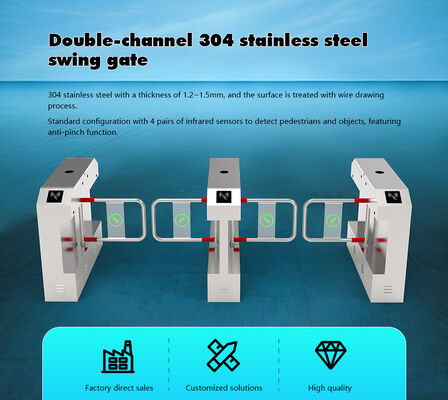

| Material | 304 stainless steel |
| Surface treatment | Brushed finish |
| Thickness | 1.2~1.5mm |

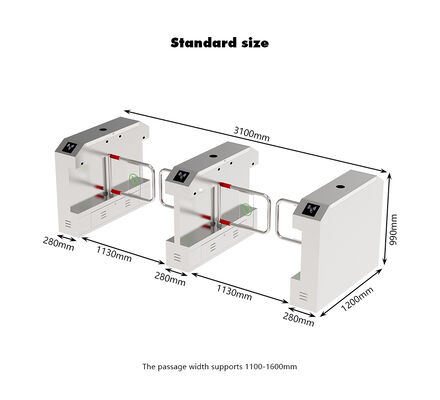

| Size | 1200*280*990mm(Chassis) |
| Opening speed | 0.5~1s |
| Passage Width | 1100~1600mm |
| Service Life | 4 million cycles |
| Relative humidity | ≤90%, no condensation |
| Gate opening signal | relay |
| Drive current | >10mA |
| Working environment | -20℃~+60℃ |

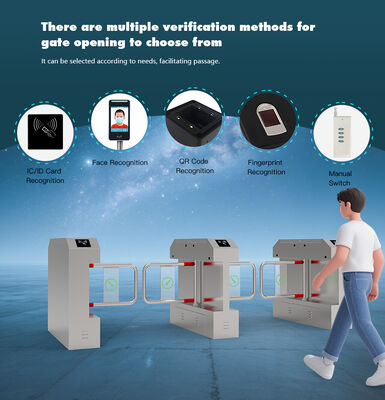

| Access Control Methods | Facial Recognition, Card Swiping, QR Code |
| Applicable Locations | Office buildings, scenic spots, apartments, schools, and more |
Product Images
Front View
Side View
Operation View
Installation View
