HCW 1-Second Operation Speed Gate Turnstile and 600-1000mm Channel Width Swing Barrier Turnstile
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HCW |
| 인증 | CE/ISO 9001 |
| 모델 번호 | CW495 |
| 최소 주문 수량 | 2개 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 나무 케이스 |
| 배달 시간 | 5-8 근무일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 일 당 100개 조각 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Brand name | HCW | 제품 모델 | CW495 |
|---|---|---|---|
| 제품 소재 | 304 스테인레스 스틸 | 제품 크기 | 1400*130*990mm |
| 보증 | 1년 | 자격증 | ISO 9001/CE |
| 작동 온도 | -25 7 ~ 70 ℃ | 개장 및 폐장 시간 | 1S |
| 모터 | 40W DC 브러시리스 | 적외선 빔 | 6 쌍 |
| 정상적인 서비스 수명 | 5 백만주기 | 채널 폭 | 600-1000mm |
| 강조하다 | 1-second speed gate turnstile,swing barrier turnstile 600-1000mm,speed gate turnstile with warranty |
||
제품 설명
HCW 1-Second Operation Speed Gate Turnstile and 600-1000mm Channel Width Swing Barrier Turnstile
HCW Speed Gate Turnstile - Biometric Swing Gate Access Control System
The HCW CW495 is a high-performance subway speed gate turnstile designed for demanding access control environments, featuring a quick swing barrier turnstile mechanism that delivers rapid 1-second operation for efficient pedestrian flow.
Product Introduction
Constructed with premium 304 stainless steel, this durable turnstile accommodates 600-1000mm channel widths while processing 30-40 people per minute - making it ideal for mass transit hubs, corporate campuses, and secure facilities. The system features advanced turnstile gate communication interface RS485/RS232 for seamless integration with existing security infrastructure. Its 40W DC brushless motor ensures quiet, maintenance-free operation while achieving an exceptional 5 million cycle lifespan. Six pairs of anti-clipping swing turnstile gate infrared sensors provide reliable tailgating prevention. Certified to ISO 9001/CE standards and operating in extreme -25℃~70℃ temperatures, the CW495 offers outstanding value with competitive pricing.
Specifications
| Brand Name | HCW |
|---|---|
| Product Model | CW495 |
| Product Material | 304 stainless steel |

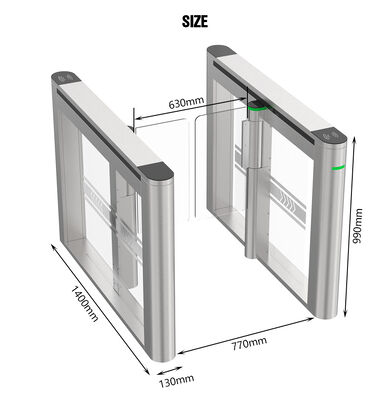

| Product Size | 1400*130*990mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ |
| Motor | 40W DC brushless |
| Opening/Closing Time | 1s |
| Infrared Beam | 6 pairs |
| Normal Service Life | 5 million cycles |
| Running Speed | 30~40 people/minute |
| Channel Width | 600-1000mm |
Key Advantages
- Ultra-Fast Access Control: Industry-leading 1-second response time with precision 40W DC brushless motor, processing up to 40 persons per minute.
- Advanced Biometric Integration: Ready integration with face recognition technology for touchless access solutions.
- Intelligent Pedestrian Management: Smart infrared detection (6 pairs) automatically adjusts to human flow patterns.
- Customizable Operation Modes: Adjustable cycling speeds (1-3s) based on time periods or security levels.
- Energy-Efficient Performance: Consumes minimal power while delivering robust performance across extreme temperatures.
Applications
- Mass Transit Systems: Excels in subway stations and airports, processing 40 persons/minute with 1-second response time.
- Corporate Security: Adapts to different security levels in office buildings while maintaining fast throughput.
- Smart City Infrastructure: Ideal for stadiums and municipal buildings with smart city integration capabilities.
