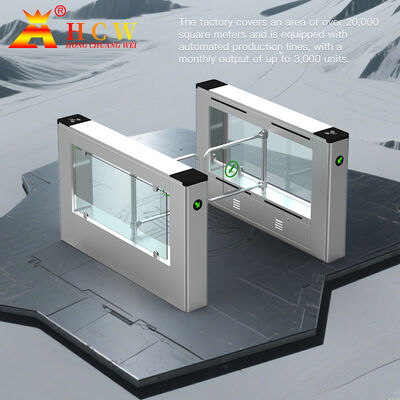

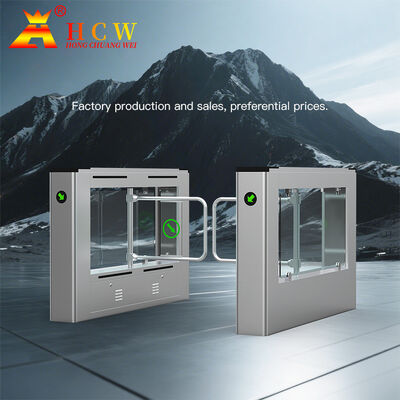

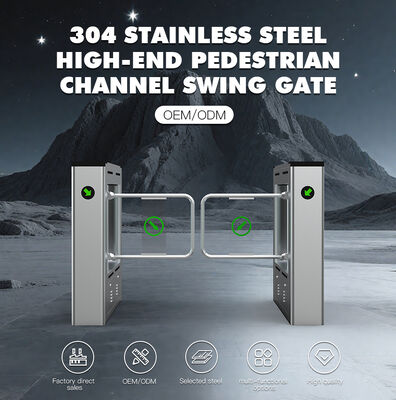

AC220V Power Supply Swing Barrier Turnstile with IP46 Protection and 30-40 People/Minute Capacity
| 원래 장소 | 심천, 중국 |
|---|---|
| 브랜드 이름 | Hongchuangwei |
| 인증 | CE/ISO 9001 |
| 모델 번호 | CW421 |
| 최소 주문 수량 | 2개 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 나무 케이스 |
| 배달 시간 | 5-8 근무일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 일 당 100개 조각 |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 모델 | CW421 | 전원 전압 | AC220V |
|---|---|---|---|
| 작업 환경 온도 | -25 7 ~ 70 ℃ | 상대습도 | 97% |
| IP 보호 수준 | 46 | 정격 출력 | 25W |
| 문제없는 운영 시간 | 200만회 | 달리기 속도 (xx 사람/분) | 30 ~ 40 명/분 |
| 강조하다 | AC220V Power Supply Swing Barrier Turnstile,IP46 Protection Swing Turnstile Gate,30-40 People/Minute Pedestrian Swing Gate |
||
제품 설명
HCW Swing Barrier Turnstile with Brushless Motor & Infrared Anti-Pinch Safety
Pedestrian Swing Turnstile Barrier Gate with Face Recognition

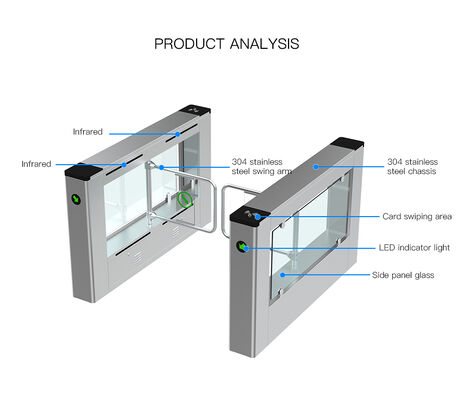

The CW421 is a high-performance anti-pinch swing turnstile gate featuring STC CPU chip technology and brushless motor operation. This versatile system supports multiple access methods including IC/ID card readers, facial recognition, fingerprint scanning, QR codes, and passport verification. Equipped with 6 pairs of infrared sensors for enhanced safety, it's ideal for office buildings, subways, schools, gyms, and other high-traffic areas.
Key Features
- Access control with audible/visual alarms for unauthorized entry attempts
- Configurable operation modes (always open/closed) with adjustable door wing speed
- Advanced anti-following tracking technology prevents unauthorized passage
- Safety rebound mechanism with motor cutoff when obstruction detected
- 120Nm impact-resistant automatic locking system
- Self-diagnostic system with alarms for intrusions, pinching, and tailgating
- Remote management capability with online/offline operation modes
- LED directional indicators display passage status
- Emergency power-off release allows free passage during outages
- Automatic reset function with configurable passage timing
Technical Specifications
| Product Model | CW421 |
|---|---|
| Motor Type | DC brushless motor |
| Infrared Sensors | 6 pairs |
| Channel Width | 600-1100mm |
| Dimensions | 1560×220×990mm (L×W×H) |
| Weight | Approx. 68kg |
| Operating Humidity | ≤90% (non-condensing) |
| Door Wing Material | Stainless steel pipe (standard) |
