AC220V Power Supply Swing Barrier Turnstile with 1400*140*990 mm Size and 55 KG Weight for Secure Entry
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Hongchuangwei |
| 인증 | CE/ISO 9001 |
| 모델 번호 | CW411 |
| 최소 주문 수량 | 2개 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 나무 케이스 |
| 배달 시간 | 6-10 근무일 |
| 지불 조건 | 티/티 |
| 공급 능력 | 매주 1000 PC |
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 | CW411 | 품목 이름 | 회전문 게이트 |
|---|---|---|---|
| 전원공급장치 | AC220V±10% | 작동 온도 | -25℃-70℃ |
| 재료 | 스테인레스 스틸 | 크기 | 1400*140*990mm |
| 패키지 무게 | 약 55KG | 통신 인터페이스 | 스위치 값, 옵션, rs232/485 |
| 강조하다 | AC220V Power Supply Swing Barrier Turnstile,1400*140*990 mm Size Swing Turnstile Gate,55 KG Weight Pedestrian Turnstile |
||
제품 설명
HCW Swing Barrier Turnstile with Bi-Directional Access Control
High-Quality Security Access Control with QR Code Support
The CW411 swing turnstile gate combines motorized operation, durable chassis construction, and intelligent gate control for superior pedestrian traffic management in high-traffic environments.
Product Overview
Designed for campus environments including libraries, teaching buildings, and student apartments, this swing turnstile provides efficient crowd management and unauthorized entry prevention. The system features 6 pairs of high-sensitivity infrared sensors with PWM control for precise detection of unauthorized passage attempts, including anti-trailing alerts, collision prevention, and directional discrimination.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Swing Turnstile Gate |
| Power Supply | AC220V±10% 50HZ/60HZ |
| Infrared Sensors | 6 pairs (expandable to 12 pairs) |
| Channel Width | 550-990mm |

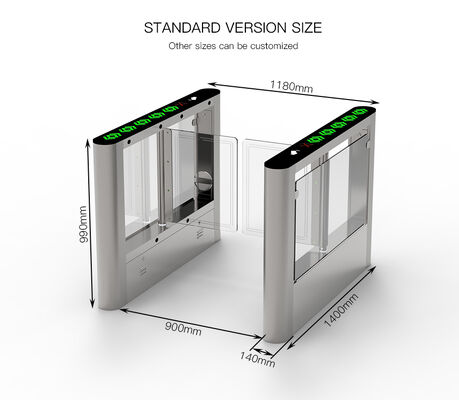

| Product Dimensions | 1400×140×990mm |
| Weight | Approximately 68kg |
| Operating Humidity | ≤90% (non-condensing) |
| Throughput Capacity | 30-45 persons/minute |
| Motor Type | DC Motor |
| Opening/Closing Time | 0.5-1 second |
Key Features

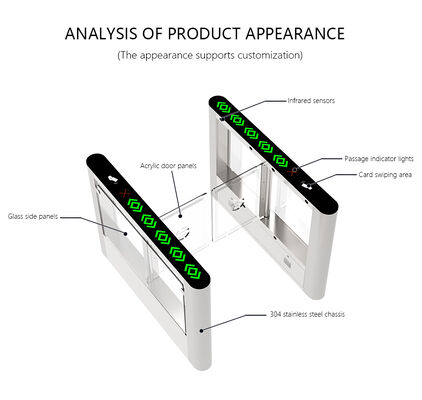

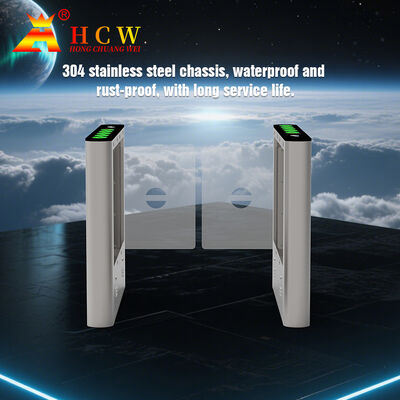

- Durable Construction: 304 stainless steel exterior with anti-collision reset function; internal components treated with anti-rust and anti-corrosion coatings
- Advanced Detection: Expandable to 12 infrared beams for precise identification of adults, children, and objects with sophisticated anti-tailing analysis
- Automatic Reset: Swing arm returns to blocking position if passage isn't completed within adjustable time limit
- Safety Features: Emergency escape function with automatic opening during power failure; complies with fire safety regulations
- Anti-Pinch Protection: Infrared detection in swing arm movement area prevents operation when obstructions are present
Product Images
